Positioning laser PL30-F red
- Long-life red laser diode
- Robust housing
- IP 65
- Focusable, therefore always an exact fine line
- Easy to mount

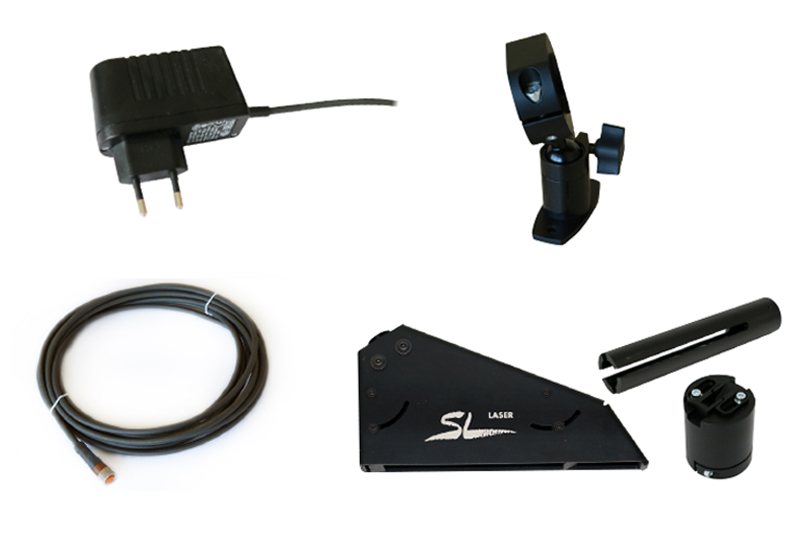

- Supplied with ball joint bracket
The PL30-F red positioning laser is a laser with a highly visible beam and special optics. Together with a laser diode and driver electronics, this optic forms the positioning laser module. The robust positioning laser is designed for industrial use. It helps with the exact positioning of tools and workpieces, as well as the precise alignment of instruments and machines. Special features are the compact design, a constant output power and an electronically insulated housing.
Possible optics
Further optics on request.
System specifications
| Laser color | Wavelength | Power Diode | Output power | Focusable | Optics | Laser class |
|---|---|---|---|---|---|---|
| red | 635 nm | 10 mW | < 1 mW | yes | line | 2M |
| red | 635 nm | 10 mW | < 1 mW | yes | cross | 2M |
Technical data
| Optical properties | |
|---|---|
| Laser | diode laser |
| Optics | homogeneous line |
| Lifetime | > 20.000 h |
| Diode power | 10 mW to 50 mW |
| Mechanics | |
|---|---|
| Housing | anodized aluminium |
| Weight | approx. 300 g incl. cable |
| IP protection class | IP 65 |
| Temperature range | 0 °C .. +50 °C |
| Inspection and safety | |
|---|---|
| Standards | EN 60825-1:2015-07 |
| and | IEC60825-1, EN76-2, |
| Certifications | 21CFR 1040, CE |
| Shock load | 4g |
| Electrical data | |
|---|---|
| Voltage | 16-33 VDC |
| Wire colors | (+) Brown, (-) Blue, (PE) Green/Yellow |
| Power consumption | 1 W |
| Supply cable | 5 meters |
