The ProCollector laser measurement system
– ingeniously simple

  • Create a precise measurement for 2D and 3D objects
  • Finally a measuring method that is as simple as it is safe
  • All steps are intuitive and easy to learn
  • With only two measuring points per surface to the perfect floor plan

A laser measurement system that works as a point projector takes over the efficient creation of a measurement for the CAD software on the building site, on your interior design job or when working in production. The data of the measuring points can be further processed in your CAD software and used in the calculations. But this ingenious technology can of course also be used for the reverse process as an assembly aid.

If you have generated drawing data in the CAD software, templates can be projected with the ProCollector onto your workpieces, onto rooms and here, for example, onto stairs. For this, only three measuring points are approached as reference points and the work can start. The ProCollector is powered by a built-in rechargeable battery so that you can work completely independently of local conditions.

Laser measuring system ProCollector

ProCollector laser measurement system

Long experience with laser projection ensures simplest operation

The ProCollector measurement system is the logical continuation in the application of laser technology with our laser projectors. Just like these, the laser-based measurement system facilitates and accelerates many work processes during measurement and supports colleagues in avoiding the all too familiar mistakes.

Inaccuracies in the measurement, errors or transposed numbers in the data transmission of the measuring points and misunderstandings in the interpretation of the data are a thing of the past with the ProCollector and the appropriate software. The ProCollector is also very easy to operate and transport on site and can be adjusted to all height differences if required.

Do you have
any questions?

Contact us.

The application of the ProCollector in practice

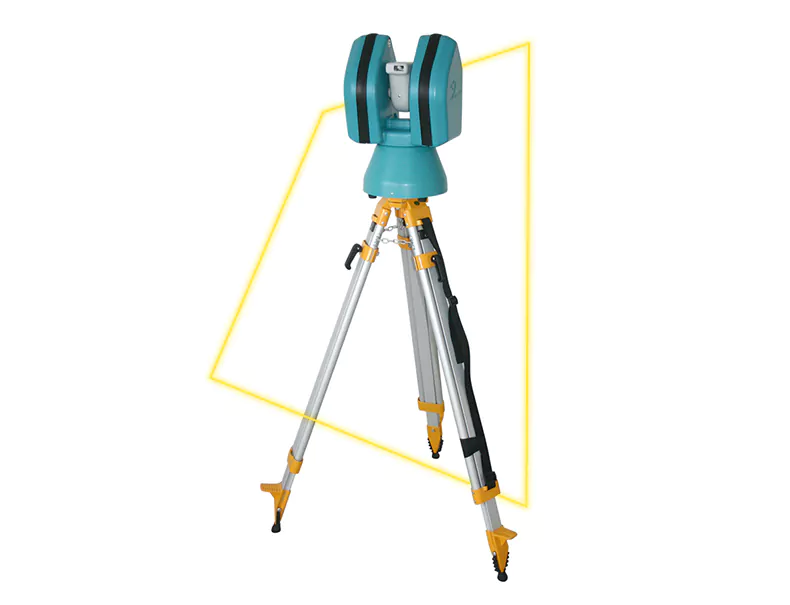

In principle, the ProCollector consists of a projector for laser beams that can be swivelled or rotated in different directions. As a laser distance meter, it records and stores the data or measuring points obtained for on-site measurement. It is mounted on a tripod frame that can be adjusted to the local conditions. Quickly set up, a few reference points and changes of location for the vertical and horizontal surfaces are sufficient for the software to record all the data for the drawings to be made in conjunction with the recorded calibration points.

The recorded coordinates from the measurements are entered into a DXF file, transferred via interface and can be used immediately in the CAD system. This is as convenient as it is precise. With the ProCollector, you work on the safe side when measuring on the building site or in the hall. But you can also take measurements for fully furnished rooms without having to rebuild and move furniture first. With the ProCollector, even projections, rounded or multi-angled areas can be measured precisely.

Typical applications for the laser measurement system are for example

  • Building trade – directly on the building site, e.g. for stair construction
  • Woodworking/carpentry – in the factory or on site
  • Stone industry – for dismantling or cutting
  • Textile industry – measuring and cutting to size
  • Composite – measuring of processing surfaces, projection for fastening

With the inexpensive ProCollector from SL Laser, you can save yourself the costly task of having to take measurements from service providers in the future. Take your measuring into your own hands!

Typical areas of application for the ProCollector from SL Laser

The ProCollector proves its worth wherever precise and millimetre-accurate measurement data or projections are required for measuring or machining workpieces or on the construction site.

A measurement with the ProCollector provides reliable templates for CAD software or direct application.

You can rely on the consulting at SL Laser

Since the founding of SL Laser, our engineers and designers have always focused their work and the development of all products on ease of use in practice. A worldwide network provides training and advice to our customers via screen or at the original place of use. Therefore, please do not hesitate to contact us. We will clarify with you, without obligation, how and where you can best use your new ProCollector. We will also be happy to train your staff. All our products have been developed for your benefit:

  • Facilitation of all work processes with the measurement and projection of templates
  • Acceleration of work processes and reduction of personnel costs
  • Reduction of error margins and reduction of efforts for corrections

Do you have questions about the ProCollector or one of our other products? Please feel free to contact us. We will be happy to provide you with all the information you need!

System specifications of the ProCollector

  • System resolution Angle
    > 0.0002°, distance: 1 mm
  • Field of view
    Horizontal: 360° (1.5 rotations), Vertical: 200°.
  • Laser output power
    < 1 mW
  • Laser diode
    635 nm
  • Laser class
    Class 2M according to IEC/EN 60825-1:2015-07 CE certified

Of course, like all our products, the ProCollector complies with the legal regulations and adheres to the respective standards and limit values.
